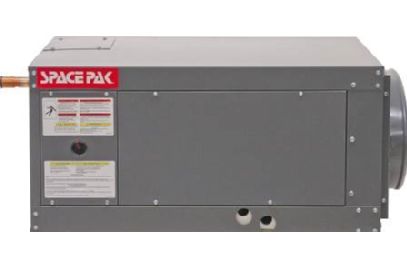

SpacePak – ESP-4860GH – 4.0-5.0 Ton Horizontal R410a Air Handler

Description

THIS MODEL HAS BEEN PHASED OUT – NEW MODEL IS ESP-4860JH

The ESP-G series is a horizontal
cooling/heat-pump fan coil unit with a DX (direct expansion /
R-410A) coil. The G series has the capability of a remote mounted
electric hookup instead of an internal hookup. MTI proprietary
control board to provide system diagnostic codes for fan on, float
switch, coil freeze up, plugin ACM molex connection, simplified
thermostat wiring. Soft Start feature available when paired with
the ACM control module. This SpacePak unit can be matched with
a cooling only condensing unit, or a heat pump unit. 6-Row Copper/Aluminum
Evaporator coil, sweat type refrigeration connections, Thermal
Expansion Valve, Anti-Frost Switch, Integrated Control Board,
24 Volt Transformer, Insulated Cabinet, Float Switch, Condensate
Trap, Anti-Vibration Foam Strips, Mold Resistant Primary Drain
Pan. For additional heating options with this unit, an electric
duct heater or a hot water coil can be added. Electric duct heater
must be installed horizontally. This unit can also convert to
a vertical discharge, but must still lay horizontal. Line set
3/8×7/8. MEA approval: MEA-119-85-E.

• R410A refrigerant
• Heat pump compatible
• Six-row copper/aluminum evaporator coil
• Sweat-type refrigerant connections
• Factory installed TXV
• Anti-frost control
• 24V transformer
• Fan relay
• Insulated cabinet
• Float switch
• Condensate trap
• Anti-vibration foam strips
• Polyethylene primary drain pan
• See ARI directory at www.ari.org for specific capacity and SEER

Nom. Tons: 4 / 5; CFM @ 1.5″ W.C: 1,150; F/L Amps:
5.3; Motor HP: 1; Suction Conn.: 7/8″; Liquid Conn.: 3/8″; Width:
43-1/8″; Height: 14-1/8″; Depth: 29-3/8″; Wt. Lbs.: 151
