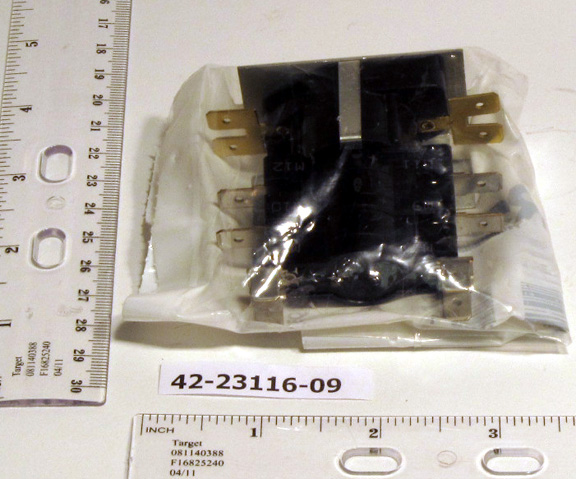

Sequencing Relay

Description

Sequencing Relay

Designed as a direct replacement for OEM assemblies this relay restores full load switching in equipment that relies on precise contact life. Every unit passes inspection to ensure dimensional tolerances for an effortless fit. Factory tested and ready for service the relay matches original performance specs so downtime stays minimal. Built with proven materials the relay resists vibration and temperature swings common in HVAC duty. Engineered for seamless compatibility the relay preserves balance and keeps diagnostics clear.

A corrosion resistant finish shields critical surfaces from attic humidity and coastal air. Technicians receive pre terminated leads and hardware so the swap takes minutes with ordinary hand tools. Internal protection cuts power if limits are exceeded guarding downstream components. Sealed internals remove routine maintenance letting service crews focus on other call outs. The form factor lines up with existing brackets and grommets eliminating the need to drill fresh slots.

Specifications
• Coil voltage: 24 V AC
• Contact rating: 30 A resistive
• Contact form: SPDT
• Terminal style: 0.25 in quick connect
• Mounting: universal flange
• Operating temperature: minus 20 to 150 F
• Insulation class: Class B
• Dielectric strength: 1500 V RMS
• Pickup voltage: max 18 V
• Dropout voltage: min 10 V Technicians receive pre terminated leads and hardware so the swap takes minutes with ordinary hand tools.

Use this relay to switch high current loads from a low voltage signal.
