Sauermann Si-30 Mini-Split Condensate Pump | 230v
$192.00
Sauermann Si-30 Mini-Split Condensate Pump | 230v
1 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

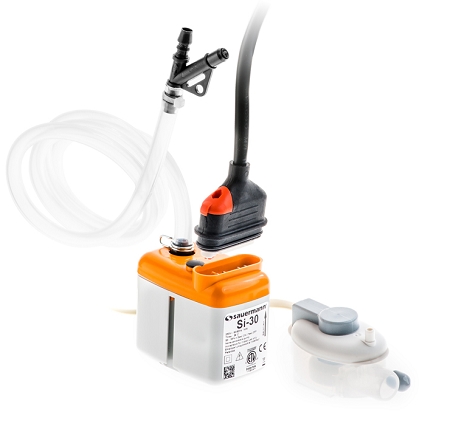

The Si-30 (5 gph / 19 lh) is suitable for air conditioner units sized up
to 5.6 tons (20 kW / 67 kBtu). Specifically designed for lifting
condensate, the Si-30 is silent (20 dBA), regardless of the volume of
condensate to be discharged.
| Max flow rate | 5 gph |
| Max discharge head | 33 ft |
| Max suction head | 10 ft |
| Max pressure | 46 ft |
| Insulation class | Double insulation |
| Mains supply | 120V: (SI3000SIUS11) 230V: (SI3000SIUS23) |
| Operation conditions | 70%: 3s ON – 1s OFF |
| Protection | IP20 |
| Weight | 1.10 lb |
| Master pack quantity | 20 |
Safety switch
NC 8A resistive – 250 V
Detection
Detection unit
Thermal protection
239 deg. F (auto-reset)
Pump dimensions
| Length | Width | Height | |
|---|---|---|---|
| Pump | 2 5/8” | 1 3/4” | 2 3/8” |
| Detection unit | 2 1/4” | 1 1/2” | 1 1/2” |
| Packaging | 5 5/16” | 5 5/16” | 2 3/8” |
Detection levels
| ON | 5/8” |
| OFF | 7/16” |
| SAFETY | 3/4” |
Pump sound levels
| at 3,3ft or 1m according to EN ISO3744 (dBA) | <= 20 |
| at 3,3ft or 1m in application (dBA) | <= 27 |

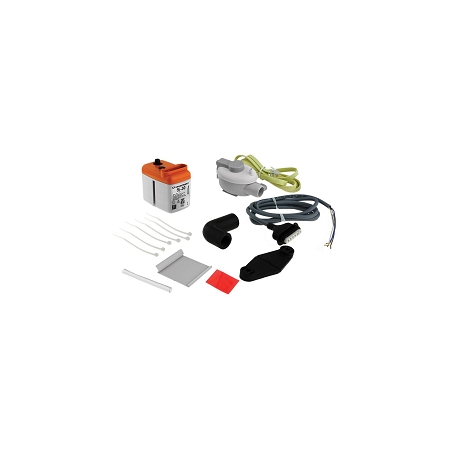

Kit contents
Si-30 Piston Pump
Detection Unit – SI2958, 2′ cable
Anti-Vibration Mounting Bracket
Clear PVC Tubing, 1/4″ i.d. fitted with a Drain Safe Device
Power Cable, 5′ (2 power wires, 2 safety wires)
90 Deg Rubber Elbow, 19/32″ i.d. x L 6″
Vent Tube, 5/32″ i.d. x L 2 15/16″
Mounting Rail
Adhesive
Tie Wraps (6)
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| MPN | SI3000SIUS23 |
