Description

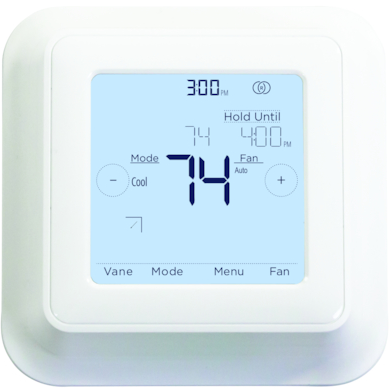

MRCH2 WIRELESS REDLINK REMOTE CONTROLLER SPECIFICATIONS

• Touch panel, Backlit, easy-to-read display

• New RedLINK™ 3.0 wireless technology

– Not compatible with MHK1, MOS1, MCCH1, or Gateway

(Rig) RedLINK 2.0 wireless technology environment.

• User functions allow user to set:

– On/Off

– Operation modes cool, heat, drying, fan

– Set temperature (separate dual set points for heat and cool)

– Fan speed setting

– Airflow direction

• Set temperature range limits (dependent on the system

connected):

– Cooling from 50° to 99° F

– Heating from 40° to 90° F

– Auto from 50° to 90° F with dual temperature setting

• MHK2 Scheduling options:

– No Schedule

– MO-SU = Every day the same

– MO-FR, SA, SU = 5-1-1 schedule

– MO-FR, SA-SU = 5-2 schedule

– Each Day = Every day individual

– Allow kumo cloud to be schedule holder

• Hold function

• Temporary or Permanent schedule override

• Lockout:

– On, Off, Mode, Fan Speed, Set point, Vane Direction

• Day/Time display with a 12 or 24-hour clock

• Supports both Fahrenheit and Celsius

• RedLINK™ Wireless Connection Status

• Filter sign display

• Diagnostics: Displays and records error codes

• Adjustable auto mode deadband

• Space temperature offset adjustment

• Space humidity offset adjustment

• Hide (on screen only)

– Indoor temperature, Indoor humidity

• Temperature Sensing Source

– MHK2

– Indoor Unit

– RedLINK Wireless Indoor Air Sensor (IAS)

– Average of MHK2 and RedLINK Wireless Indoor Air Sensor

(IAS)

• Indoor Humidity Source

– MHK2

– RedLINK Wireless Indoor Air Sensor (IAS)

– Average of MHK2 and RedLINK Wireless Indoor Air Sensor

(IAS)

• Improved indoor unit function code list

– Indoor unit type

– Expanded to 28 indoor unit codes

• Reset to factory default

• Uses two “AA” alkaline batteries (included)

• Dimensions: 4-5/64” x 4-5/64” x 1-1/16” (104 x 104 x 27 mm)

• Operating Ambient Temperature: 32° to 120° F (0° to 48.9° C)

• Operating Relative Humidity: 5% to 90%

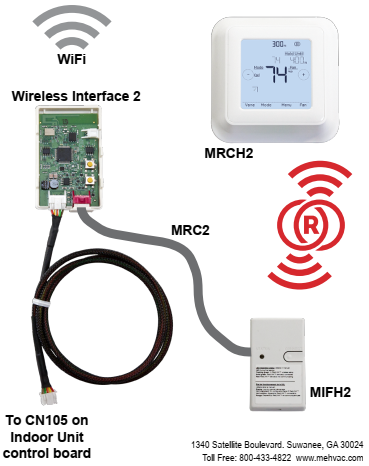

MIFH2 WIRELESS RECEIVER SPECIFICATIONS:

• Included in MHK2 Kit

• Mounts next to or near indoor units to allow MRCH2 Remote

Controller operation

• Connects to indoor unit control board with MRC2 Cable

• Dimensions: 3-3/32” H x 1-3/4” W x 39/64” D

(74.8 x 44.4 x 15.4 mm)

• Operating Ambient Temperature: -40° to 165° F (-40° to 73.9°

C)

• Operating Relative Humidity: 5% to 95%

MRC2 CABLE

• Included in MHK2 Kit in the MIFH2 box• Connects MIFH2 Wireless Receiver to the CN105 connector onindoor unit control board
