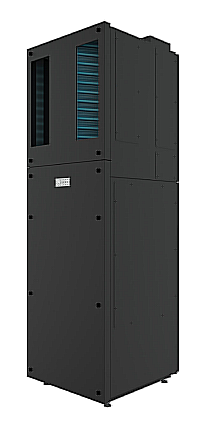

Ephoca Vertical Stack XL Unit Only 220V AVP20N3H2

Description

The Ephoca Vertical Stack XL Unit offers a space-saving solution with a 12-inch by 25-inch footprint, making it ideal for installations requiring minimal floor space. This unit is perfect for settings where direct venting or ducting is necessary, with up to 0.6” external static pressure. It can be installed on a corridor wall, allowing full servicing without entering the apartment or hotel room. A bathroom exhaust can connect to the dedicated stale air exhaust on either the right or left side. The unit can be vented directly outside or through ductwork.
Key features include:

• Cooling capacity ranging from 3,900 to 15,100 BTU/h with an EER/IEER of 11.66/15.4.
• Heating capacity at 47°F ranging from 3,900 to 14,900 BTU/h, with a COP of 3.52.
• Heating capacity at 13°F ranging from 3,600 to 6,900 BTU/h, with a COP of 2.03.
• Heating capacity at 5°F ranging from 2,700 to 6,700 BTU/h, with a nominal capacity of 6,400 BTU/h.
• Indoor sound levels ranging from 27 to 46 dB(A), ensuring quiet operation.
• Flexible ducting options with up to 0.7″ external static pressure for external ducting and 0.6″ for internal ducting.
• Onboard touch controller for diagnostics and programming, with optional wall-mounted or Wi-Fi controls.

Choose the Ephoca Vertical Stack XL Unit Only for a reliable, energy-efficient solution that combines advanced functionality with a sleek design, enhancing both comfort and aesthetics in your building.
