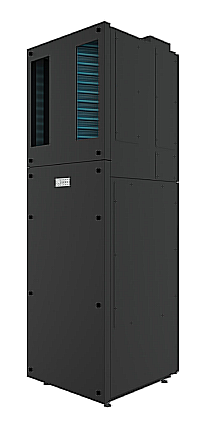

Ephoca Vertical Stack XL Unit Only 220V AVM20N3H2
$14,027.85
Ephoca Vertical Stack XL Unit Only. A compact corridor-mounted heat pump engineered for maximum performance in a minimal footprint. Ideal for multifamily, hospitality, and light commercial spaces where access and acoustics are just as important as efficiency.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Ephoca Vertical Stack XL Unit Only is designed to provide heating and cooling in tight spaces without compromising comfort. This unit mounts directly to a corridor wall and can be fully serviced without entering the apartment or room it serves. Its compact 23 by 24 inch footprint makes it easy to fit into tight mechanical zones or hallway alcoves, reducing intrusion into valuable floor space. It is compatible with direct venting or ducted connections depending on layout and supports bathroom exhaust integration on either side of the cabinet.
This base model includes the core heat pump unit without the optional heat strip or ERV installed. That makes it ideal for applications that already meet ventilation codes or do not require supplemental electric heat.
Key features include:
- Cooling capacity from 4,500 to 24,000 BTU per hour
- Heating capacity up to 24,000 BTU at 47°F
- COP up to 3.83 and EER of 12.6
- External static pressure up to 0.6 inches
- Sound levels as low as 27 dB(A)
- Left or right stale air exhaust routing
- Optional field-installed accessories including ERV and electric heat
- Front access panel for easy maintenance
Choose the Ephoca Vertical Stack XL Unit Only for a clean, quiet, and efficient comfort solution built to fit where others can’t.
Additional information
| Weight | 140 lbs |
|---|
