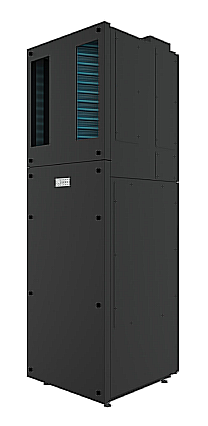

Ephoca Vertical Stack XL Heat Strip ERV 220V AVP20N3H2-ERVHS

Description

The Ephoca Vertical Stack XL Heat Strip ERV 220V offers a comprehensive solution for heating, cooling, and ventilation needs. Its compact design allows for installation on corridor walls, facilitating full servicing without entering individual units. The integrated ERV module ensures continuous fresh air exchange while recovering energy from exhaust air, enhancing indoor air quality and system efficiency. The electric heat strip provides supplemental heating during extreme cold conditions, ensuring consistent indoor comfort.​
Key features include:

• Cooling capacity ranging from 4,500 to 24,000 BTU/h with an EER of 12.6 and IEER of 15.8
• Heating capacity at 47°F ranging from 5,000 to 24,000 BTU/h plus 12,300 BTU/h electric heat, with a COP of 3.83
• Heating capacity at 13°F ranging from 4,150 to 15,500 BTU/h plus 12,300 BTU/h electric heat, with a COP of 2.51
• Heating capacity at 5°F ranging from 3,850 to 11,800 BTU/h plus 3,000 BTU/h electric heat
• Integrated ERV with MERV 13 filtration, achieving winter sensible recovery of 83–80% and latent recovery of 73–65%
• Indoor sound levels as low as 27 dB(A), ensuring quiet operation
• Flexible ducting options with up to 0.7″ external static pressure for external ducting and 0.6″ for internal ducting
• Onboard touch controller for diagnostics and programming, with optional wall-mounted or Wi-Fi controls​

Choose the Ephoca Vertical Stack XL Heat Strip ERV 220V for a reliable, energy-efficient solution that combines advanced functionality with a sleek design, enhancing both comfort and aesthetics in your building.
