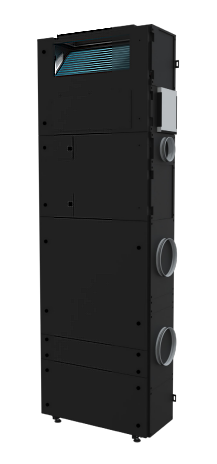

Ephoca Vertical Stack Unit Only 220V AVM10N3H2

$10,392.30

Ephoca Vertical Stack Unit Only. The Ephoca Vertical Stack Unit is a compact vertical heat pump designed for corridor wall installation in multifamily, hotel, or student housing projects.

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AVM10N3H2 Category: Brand:

Description

This version includes the base unit only, without electric heat or an energy recovery ventilator, making it ideal for buildings that already meet ventilation code or use centralized backup heat.
The system runs on R32 refrigerant and inverter compressor technology, delivering efficient heating and cooling in a self-contained vertical cabinet. It installs inside a corridor mechanical closet and vents directly through the exterior wall or connects to internal ductwork. All service can be performed through the front panel, keeping maintenance entirely outside of occupied rooms.
Selectable modes include cool, heat, auto, and dehumidify. The onboard controller is factory-installed and supports optional upgrades for wall-mounted or Wi-Fi-enabled control platforms. The cabinet features a slim footprint and includes multiple airflow connection options to fit different layouts.

Key features include:

  • Cooling capacity from 3,900 to 15,100 BTU
  • Heating up to 14,900 BTU at 47°F
  • R32 refrigerant
  • No outdoor unit required
  • Slim vertical cabinet for corridor installation
  • Full front access for servicing
  • 0.6 inch internal static pressure
  • Quiet operation from 27 to 45 dB
  • Factory-mounted controller included
  • Compatible with optional controls


The Ephoca Vertical Stack Unit Only is a service-friendly, all-electric solution that delivers efficient comfort in a clean and compact vertical package.

Additional information

Weight 140 lbs
