Ephoca Vertical Stack Unit Only 220V

Ephoca Vertical Stack Unit Only 220V AVK10R3H2

$10,392.30

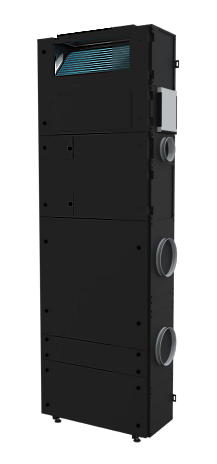

Ephoca Vertical Stack Unit Only. The Ephoca Vertical Stack Unit is a compact, fully self-contained heat pump built for corridor wall installations in multifamily, hospitality, and assisted living environments. This version includes the base unit only, with no electric heat or energy recovery ventilator, making it a strong fit for projects that already meet ventilation code or provide centralized backup heating.

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AVK10R3H2 Category: Brand:

Description

The Ephoca Vertical Stack Unit is a compact, fully self-contained heat pump built for corridor wall installations in multifamily, hospitality, and assisted living environments. This version includes the base unit only, with no electric heat or energy recovery ventilator, making it a strong fit for projects that already meet ventilation code or provide centralized backup heating.
Running on R32 refrigerant and powered by inverter-driven technology, this unit delivers consistent comfort with no outdoor condenser required. The vertical cabinet installs inside corridor utility closets and allows for full front access, making service quick and non-disruptive to tenants. The system vents directly to the outdoors or through optional ductwork, allowing flexibility for new or retrofit layouts.
Standard operation modes include cool, heat, auto, and dehumidify. The unit ships with a factory-installed LED controller and supports optional upgrades to wall-mounted or Wi-Fi-based interfaces. The clean, narrow cabinet keeps mechanicals out of sight while maintaining reliable performance.

Key features include:

  • Cooling from 3,900 to 15,100 BTU
  • Heating up to 14,900 BTU at 47°F
  • R32 refrigerant
  • No outdoor unit required
  • Full front service access
  • 0.6 inch internal static pressure
  • Corridor wall installation
  • Factory-mounted LED controller
  • Optional smart and wall control upgrades
  • Quiet operation between 27 and 45 dB


The Ephoca Vertical Stack Unit Only offers efficient year-round comfort in a vertical layout that simplifies installation and servicing.

Additional information

Weight 140 lbs
