Ephoca Vertical Stack Unit Only 110V AVP10N3H1
$10,392.30

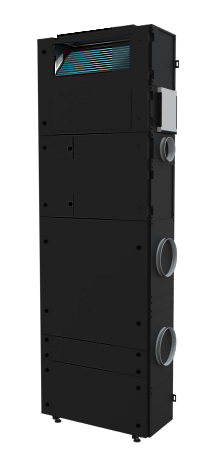

Ephoca Vertical Stack Unit Only. The Ephoca Vertical Stack Unit is a self-contained heat pump designed for corridor wall installation in multifamily, hotel, and dormitory buildings. This version includes the base cooling and heating unit without electric heat or ventilation, ideal for projects that already have central ventilation or backup heating systems in place.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
This model operates on R32 refrigerant and uses inverter-driven compressor technology for stable performance with high efficiency. The slim vertical cabinet installs in mechanical closets with front access to all service components, keeping maintenance outside of occupied rooms. Venting is handled directly through the wall or into ductwork, making the install clean and fully inside the building envelope.
Standard modes include cool, heat, dehumidify, and auto. The unit includes a factory-installed LED controller and supports upgrade paths for wall-mounted or Wi-Fi-enabled controls. Internal airflow can be routed to either side of the cabinet, allowing flexibility based on layout needs.
Key features include:
- Cooling capacity from 3,900 to 15,100 BTU
- Heating up to 14,900 BTU at 47°F
- R32 refrigerant
- No outdoor unit required
- Vertical cabinet with front service access
- Installs in corridor utility closets
- 0.6 inch internal static pressure
- Sound rating from 27 to 45 dB
- Factory-installed controller
- Optional smart or wall-mounted controls
The Ephoca Vertical Stack Unit Only offers flexible comfort and quiet performance in a service-friendly vertical form for modern buildings.
Additional information
| Weight | 140 lbs |
|---|
