Ephoca Vertical Stack Heat Strip ERV 220V AVP10N3H2-ERVHS
$14,688.00

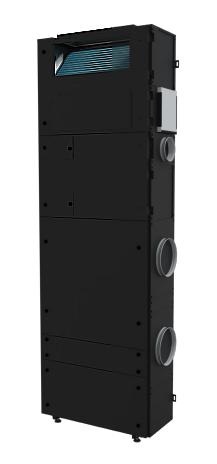

Ephoca Vertical Stack Heat Strip ERV. A vertically mounted heat pump designed with both an integrated electric heat strip and energy recovery ventilator, offering year-round comfort and fresh air exchange in compact corridor-mounted applications.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Ephoca Vertical Stack Heat Strip ERV is purpose-built for multifamily and hotel projects where efficiency, quiet operation, and service accessibility matter. The unit installs flush on a corridor wall and is fully serviceable from the hallway, eliminating the need to access the interior of apartments or suites. This model comes standard with an integrated ERV to bring in fresh air and recover up to 83 percent of energy from the exhaust, helping reduce heating and cooling demands. The electric heat strip provides dependable backup during extreme weather, kicking in automatically when needed to maintain indoor setpoints.
The system is cold-climate ready, acoustically treated, and engineered for flexible installation with both ducted and direct-vent options.
Key features include:
- Cooling output from 4,500 to 24,000 BTU per hour
- Heating capacity up to 24,000 BTU plus 12,300 BTU electric strip
- COP up to 3.83 at 47°F, 2.51 at 13°F
- Electric backup heating at 3,000 to 12,300 BTU
- Integrated ERV with MERV 13 filtration
- Sound levels between 27 and 45 dB(A)
- Up to 0.6 inch external static pressure
- Optional Wi-Fi or wall-mounted controller
Choose the Ephoca Vertical Stack Heat Strip ERV for a clean, efficient, all-in-one solution that delivers comfort, air quality, and year-round performance.
Additional information
| Weight | 140 lbs |
|---|
