Ephoca Vertical Stack Heat Strip ERV 220V AVM10N3H2-ERVHS

$14,688.00

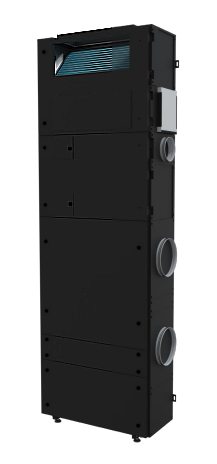

Ephoca Vertical Stack Heat Strip ERV 220V. A corridor-mounted vertical heat pump equipped with an integrated electric heat strip and energy recovery ventilator, designed for multifamily and hospitality settings requiring supplemental heating and ventilation.

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AVM10N3H2-ERVHS Category: Brand:

Description

The Ephoca Vertical Stack Heat Strip ERV 220V offers a comprehensive solution for heating, cooling, and ventilation needs. Its compact design allows for installation on corridor walls, facilitating full servicing without entering individual units. The integrated ERV module ensures continuous fresh air exchange while recovering energy from exhaust air, enhancing indoor air quality and system efficiency. The electric heat strip provides supplemental heating during extreme cold conditions, ensuring consistent indoor comfort.
Key features include:

  • Cooling capacity ranging from 3,900 to 15,100 BTU/h with an EER of 11.66 and IEER of 15.4
  • Heating capacity at 47°F ranging from 3,900 to 14,900 BTU/h, with a COP of 3.52
  • Heating capacity at 13°F ranging from 3,300 to 6,900 BTU/h, with a COP of 2.03
  • Heating capacity at 5°F ranging from 2,700 to 6,700 BTU/h
  • Integrated ERV with MERV 13 filtration, achieving winter sensible recovery of 83–87% and latent recovery of 60–73%
  • Indoor sound levels as low as 27 dB(A), ensuring quiet operation
  • Flexible ducting options with up to 0.6″ external static pressure for internal ducting and 0.7″ for external ducting
  • Onboard touch controller for diagnostics and programming, with optional wall-mounted or Wi-Fi controls
  • Optional 900 or 1,800W electric heat strip for supplemental heating
  • 220V power supply for efficient operation

Choose the Ephoca Vertical Stack Heat Strip ERV 220V for a reliable, energy-efficient solution that combines advanced functionality with a sleek design, enhancing both comfort and aesthetics in your building.

Additional information

Weight 140 lbs
