Ephoca Vertical Stack Heat Strip 220V AVK10R3H2-HS
$11,056.50

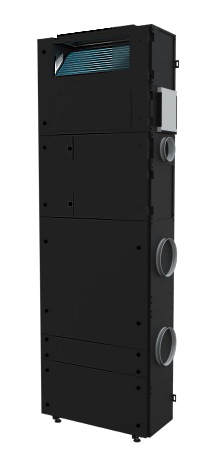

Ephoca Vertical Stack Heat Strip. The Ephoca Vertical Stack Heat Strip is a self-contained vertical heat pump with built-in electric heat, designed for corridor wall installations in multifamily, hospitality, and assisted living buildings. This version includes the integrated electric heat strip for added heating capacity during colder weather, without requiring an outdoor condenser.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The unit operates on R32 refrigerant and features inverter compressor technology for efficient performance across a wide range of ambient conditions. The electric heat strip provides 900 or 1800 watts of backup support, activating automatically when temperatures drop below the heat pump’s range. The slim vertical cabinet is built for corridor closets and allows for full service access from the front, keeping maintenance outside of occupied units.
This model supports cooling, heating, auto, and dehumidify modes. It includes a standard onboard controller with options to upgrade to wall-mounted or Wi-Fi-enabled controls. With airflow options on either side, the unit adapts to different layouts with minimal adjustment.
Key features include:
- Cooling capacity from 3,900 to 15,100 BTU
- Heating up to 14,900 BTU at 47°F
- R32 refrigerant
- 900 or 1800 watt electric heat strip
- No outdoor unit required
- Front service access for hallway installs
- 0.6 inch static pressure for internal ducting
- Sound levels from 27 to 45 dB
- Onboard control with optional upgrades
- Clean vertical cabinet design
The Ephoca Vertical Stack Heat Strip is built for quiet, all-season comfort with reliable backup heat built into the cabinet.
Additional information
Weight | 140 lbs |
---|
