Ephoca Vertical Stack ERV 220V AVM10N3H2-ERV
$14,023.80

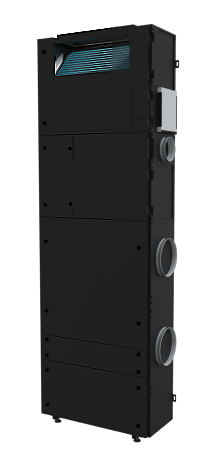

Ephoca Vertical Stack ERV. The Ephoca Vertical Stack ERV is a full-function vertical heat pump system with integrated energy recovery ventilation, designed for corridor wall installations in apartments, hotels, and senior housing. This unit provides heating, cooling, and filtered fresh air in a single cabinet, eliminating the need for separate ventilation systems or outdoor condensers.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
It uses R32 refrigerant and high-efficiency inverter compressor technology for consistent performance across a wide range of ambient temperatures. The integrated ERV brings in outdoor air through MERV 13 filtration while recovering up to 83 percent of sensible and 73 percent of latent energy from the exhaust stream. The unit vents through the wall and installs in a vertical corridor closet, allowing full service access from the hallway without entering occupied rooms.
Standard operation modes include cooling, heating, dehumidify, and auto. The system comes with a factory-mounted LED controller and supports optional wall-mounted or Wi-Fi based upgrades. Airflow is managed with internal swing louvers, and duct connections are available on either side of the cabinet.
Key features include:
- Cooling capacity from 3,900 to 15,100 BTU
- Heating up to 14,900 BTU at 47°F
- R32 refrigerant
- Integrated ERV with MERV 13 filter
- 83 percent sensible recovery and 73 percent latent
- Corridor access installation
- 0.6 inch internal static pressure
- Sound levels from 27 to 45 dB
- Factory touch controller
- No outdoor unit required
The Ephoca Vertical Stack ERV delivers comfort and clean air in one vertical, service-ready system.
Additional information
| Weight | 140 lbs |
|---|
