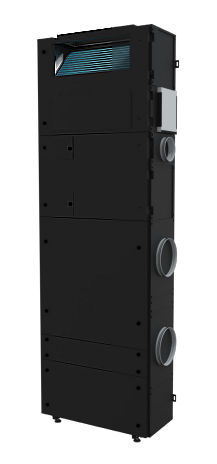

Ephoca Vertical Stack ERV 220V AVK10R3H2-ERV
$14,023.80
Ephoca Vertical Stack ERV The Ephoca Vertical Stack ERV is a complete comfort and ventilation system designed for corridor wall installation in buildings that require fresh air and full climate control in one cabinet. This version includes the integrated energy recovery ventilator and operates with no outdoor unit, making it a strong fit for multifamily, hospitality, and senior housing applications.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
It uses R32 refrigerant and inverter compressor technology for high-efficiency cooling and heating year-round. The built-in ERV delivers balanced ventilation with MERV 13 filtration while recovering up to 83 percent of sensible and 73 percent of latent energy from exhaust air. The cabinet installs in corridor mechanical closets with full front panel service access, allowing maintenance to be performed without entering occupied spaces.
Modes include cooling, heating, dehumidify, and auto with selectable fan speeds. The onboard controller comes standard with upgrade options for wall-mounted or Wi-Fi-enabled controls.
Key features include:
- Cooling capacity from 3,900 to 15,100 BTU
- Heating up to 14,900 BTU at 47°F
- R32 refrigerant
- Integrated ERV with MERV 13 filter
- 83 percent sensible and 73 percent latent energy recovery
- No outdoor unit required
- Corridor closet installation with front service access
- 0.6 inch internal static pressure
- Quiet operation between 27 and 45 dB
- Auto airflow management
The Ephoca Vertical Stack ERV offers quiet performance, energy recovery, and full comfort control in one vertical package for modern corridor-based construction.
Additional information
| Weight | 140 lbs |
|---|
