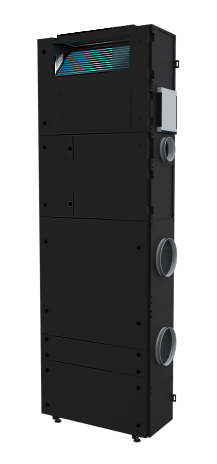

Ephoca Vertical Stack ERV 110V AVP10N3H1-ERV

$14,023.80

Ephoca Vertical Stack ERV. Ephoca vertical cabinet heat pump with integrated energy recovery ventilation for heating, cooling, and continuous fresh air inside a corridor mounted indoor system.

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: AVP10N3H1-ERV Category: Brand:

Description

The Ephoca Vertical Stack ERV is a fully self-contained all electric system built for corridor closet installation in multifamily, hospitality, and student housing applications. This version includes a factory installed ERV for buildings that require code compliant outdoor air while maintaining quiet and efficient indoor comfort with no outdoor unit.
It uses R32 refrigerant and inverter compressor technology to keep room temperatures stable while maintaining energy efficiency. The integrated ERV captures up to 83 percent of sensible energy and 73 percent of latent moisture from exhaust air and supplies filtered outside air through MERV 13 filtration. The vertical cabinet allows for front service access only, keeping maintenance outside of the occupied space.
It connects to return and supply ductwork and vents directly through the wall. Modes include cool, heat, dehumidify, and auto. Each unit comes with a built in LED controller and supports optional smart and wall mounted upgrades. Flexible discharge configurations allow for layout specific installations.

Key features include:

  • Cooling from 3900 to 15100 BTU
  • Heating up to 14900 BTU at 47°F
  • R32 refrigerant
  • Built in ERV with MERV 13 filtration
  • No outdoor unit required
  • Vertical corridor cabinet
  • Full front service access
  • Quiet operation from 27 to 45 dB
    • 0.6 inch internal static pressure
  • Optional control upgrades available

Additional information

Weight 140 lbs
