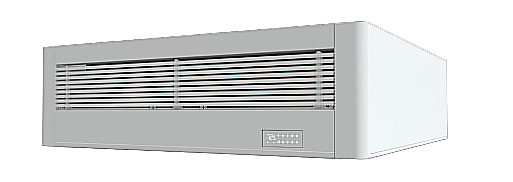

Ephoca Ceiling Suspended Unit Only 220V ASK10N3H2
$9,161.10
Ephoca Ceiling Suspended Unit Only. The Ephoca Ceiling Suspended Unit is an all-electric heat pump built for ceiling installation where wall or floor space is limited. This version includes the base unit without ERV or electric heat strip, making it ideal for buildings that already have ventilation systems in place or don’t require electric backup.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
It operates using high-efficiency inverter technology with R32 refrigerant and does not require an outdoor unit. The system vents directly through the wall or can connect to ductwork, offering flexibility in retrofit or new construction. The slim cabinet is installed overhead, keeping the equipment out of sight while maintaining full performance.
The unit offers selectable operation modes for cooling, heating, auto, and dehumidify. It includes a factory-mounted onboard controller with the option to upgrade to a wall-mounted or Wi-Fi-based control platform. Internal louvers manage airflow evenly across the space, and sound levels are rated as low as 27 dB.
Key features include:
- Cooling range from 4,500 to 24,000 BTU per hour
- Heating range up to 24,000 BTU at 47°F
- R32 refrigerant
- No outdoor unit required
- Ceiling-ready design with slim chassis
- Auto swing airflow louvers
- Factory touch controller included
- ESP up to 0.45 inches
- MERV 13 filtration field upgrade ready
- Quiet operation from 27 to 45 dB
Choose the Ephoca Ceiling Suspended Unit Only for compact ceiling installations that need efficient performance without integrated accessories.
Additional information
| Weight | 190 lbs |
|---|
