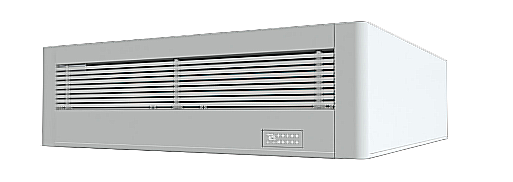

Ephoca Ceiling Suspended Heat Strip ERV 110V ASP10N3H1-ERVHS
$13,456.80
Ephoca Ceiling Suspended Heat Strip ERV. The Ephoca Ceiling Suspended Heat Strip ERV is a self-contained heat pump system with integrated electric backup and built-in energy recovery ventilation, built for overhead installation in multifamily and commercial applications. This unit handles cooling, heating, and fresh air in one clean ceiling-mounted cabinet with no outdoor unit required.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
It runs on R32 refrigerant and features inverter compressor technology for quiet and efficient year-round operation. The electric heat strip comes factory-installed in 900 or 1800 watt options and activates when ambient conditions drop below the heat pump’s capacity. The built-in ERV core supplies filtered outdoor air while recovering up to 83 percent of thermal energy and up to 73 percent of moisture from the exhaust stream. It installs flush to the ceiling and connects to the outdoors through a vent duct, keeping the entire unit inside the building envelope.
Standard control comes from a factory-installed LED interface, with optional upgrades for wall-mounted or Wi-Fi-based access. The unit supports all operation modes including cooling, heating, dehumidify, and auto.
Key features include:
- Cooling capacity from 3,400 to 14,000 BTU
- Heating up to 15,000 BTU at 47°F
- R32 refrigerant
- 900 or 1800 watt electric heat strip
- Integrated ERV with MERV 13 filtration
- Auto swing airflow louvers
- Sound levels from 27 to 45 dB
- Ceiling cabinet with paintable finish
- Optional wall or remote control
- No outdoor unit required
The Ephoca Ceiling Suspended Heat Strip ERV is a ceiling solution that delivers complete comfort and code-ready ventilation.
Additional information
| Weight | 190 lbs |
|---|
