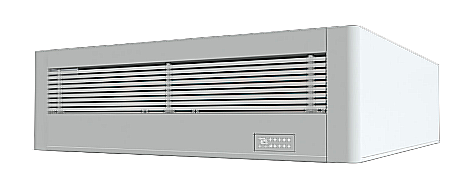

Ephoca Ceiling Suspended ERV ASK10R3H2-ERV
$12,792.60
Ephoca Ceiling Suspended ERV. A ceiling-mounted heat pump system with integrated energy recovery ventilation, designed for spaces where floor or wall installations are impractical.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The Ephoca Ceiling Suspended ERV unit is ideal for retrofit applications, dormitories, budget rental apartments, or hotels where a ceiling-mounted unit is desired. Its unobtrusive design allows it to be hung from the ceiling, keeping it out of reach and preserving wall and floor space. The unit can be vented directly outside or through ductwork, providing flexibility in installation.
Key features include:
- Compact unit with a sleek, paintable cabinet
- Easy to install with electronically controlled air louver
- Always-on back-lit LED dims after 15 seconds of inactivity
- Auto-restart and washable filters
- Optional 900 or 1,800w electric heat
- Available with or without ERV
- 115v or 230V options
- Hardwire or LCDI cord configurations
- R32 refrigerant
- Operation modes: Cool, heat, dehumidify, and auto
- Selectable fan speeds: low, medium, high, and auto
- Fresh air ERV with field-configurable amount of fresh air
- Dual 8′ external vents
- Available 0.45″ WC for external ducting, adapters, and louvers
- Onboard touch controller for maintenance
- Optional controllers: WiFi app, wall-mounted advanced touchscreen, basic touch controller, 3rd party thermostat interface, BACnet/Modbus interface.
Choose the Ephoca Ceiling Suspended ERV for a reliable, energy-efficient solution that combines advanced functionality with a sleek design, enhancing both comfort and aesthetics in your building.
Additional information
| Weight | 190 lbs |
|---|
