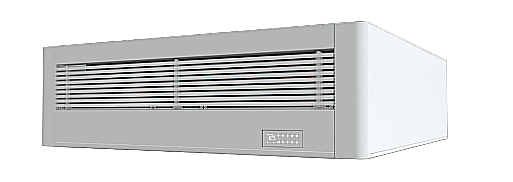

Ephoca Ceiling Suspended ERV 220V ASK10N3H2-ERV

$12,792.60

Ephoca Ceiling Suspended ERV. The Ephoca Ceiling Suspended ERV is a compact indoor heat pump system with an integrated energy recovery ventilator, offering cooling, heating, and fresh air in one overhead-mounted unit.

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ASK10N3H2-ERV Category: Brand:

Description

Designed for projects with no room for floor or wall equipment, this model keeps the entire system inside the ceiling and eliminates the need for an outdoor condenser.
It operates on R32 refrigerant and uses inverter compressor technology for efficient year-round operation. The built-in ERV recovers up to 83 percent of sensible energy and up to 73 percent of latent moisture from the exhaust while providing continuous outdoor air through MERV 13 filtration. This setup meets ventilation code requirements while keeping the space quiet and clutter-free. The unit installs flat against the ceiling and vents directly through the wall.
It supports multiple operating modes including cool, heat, dehumidify, and auto. Airflow is managed by auto swing louvers. A factory-installed LED controller is included with options to upgrade to wall-mounted or Wi-Fi-based controls.

Key features include:

  • Cooling capacity from 3,400 to 14,000 BTU
  • Heating up to 15,000 BTU at 47°F
  • R32 refrigerant
  • Integrated ERV with MERV 13 filter
  • 83 percent sensible and 73 percent latent recovery
  • No outdoor unit required
  • Auto airflow management
  • 27 to 45 dB sound rating
  • Slim ceiling cabinet design
  • Optional control upgrades


The Ephoca Ceiling Suspended ERV provides total indoor comfort and fresh air in one streamlined ceiling solution.

Additional information

Weight 190 lbs
