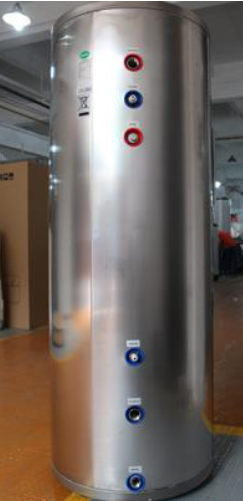

DHW80 Chiltrix 70 Gallon Stainless Steel Indirect Tank
$2,316.00
43 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Stainless Steel Domestic Hot Water Tanks For Air-To -Water Heat Pumps,
Geothermal HP, Boilers, Solar Water Heating, and Hydronic Systems
Geothermal HP, Boilers, Solar Water Heating, and Hydronic Systems
Model DHW80 All-Stainless Steel w/ Duplex 2205 Inner Tank & Coil / SUS 304 Outer Tank Enclosure
Top Quality Indirect DHW Tanks
80 Gallons Gross/70 Gallons Net- 2205 Duplex Stainless Steel Inner Tank
- 2205 Duplex Stainless Steel Indirect Coil
- Indirect Coil: 1.25” x 72’ Convoluted (Wave)
- SUS 304 Stainless Steel Outer Shell
- Ultra-High Grade Stainless Steel Duplex 2205 Tank & Coil
- 2” Thick Polyurethane Insulation
- 1x Element Port,
- 1” NPSM,
- Up To 6000W
- 1x Drain Port
- ¾” NPT Female
- 2x ½” Sensor Wells
- 1x Anode Port w/ Magnesium Anode
- Pressure Drop @ 7 GPM 6.07 PSI/ 14 Ft. head
- Cold Inlet 1” NPT
- Hot Outlet 1” NPT
- 1” NPT Coil Connectors
- Tank Diameter 23.6”
- Tank Height 64”
- Empty Tank Weight 88 Lbs.
- Ultra-High Grade
Stainless Steel
Duplex 2205
Tank & Coil
Additional information
| Weight | 130 lbs |
|---|
