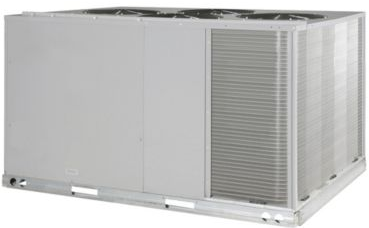

CAS181HAA0A00A Tempstar 15 Ton 11.2 EER A/C Condensing Unit, 208-230/3/60, R-410A

CAS181HAA0A00A Tempstar 15 Ton 11.2 EER A/C Condensing Unit, 208-230/3/60, R-410A

COMMERCIAL SPLIT SYSTEMS CONDENSING UNITS
R-410A, 6 to 20 TONS

BUILT TO LAST, EASY TO INSTALL AND SERVICE

• Single stage cooling capacity control on all 072-241 models
• Two stage cooling capacity control on all 120-240 models
• Round copper tube aluminum plate fin (RTPF) condenser coils on all models
• Brass suction and liquid line service valves
• Full perimeter base rail with built­in rigging adapters and fork truck slots
• Galvanized
  steel cabinet with pre-painted exterior panels and primer-coated
  interior panels tested to 500 hours salt spray protection
• Fully hermetic scroll compressor with crankcase heater
• Compressor mounted on independent vibration isolators
• Comfort
  Alert™ Diagnostic Board – LED Go-No-Go and fault code – Built in time
  guard anti-short cycle -Phase protection – Fault code retention logic
  -Low volt compressor contactor protector
• All units have high and low pressure switches
• Direct drive permanently lubricated condenser fan motors
• Newly designed terminal board facilitates simple safety circuit troubleshooting and simplified control box arrangement
• Outdoor temperature cooling operation range up to 125°F (52°C) and down to 40°F (4°C ) using winter start kit
• Models with optional low ambient control provide cooling operation down to -20°F (-29°C )
• All units factory run tested

WARRANTY

• 5 year compressor limited warranty
• 1 year parts limited warranty

* See warranty certificate for complete details.
