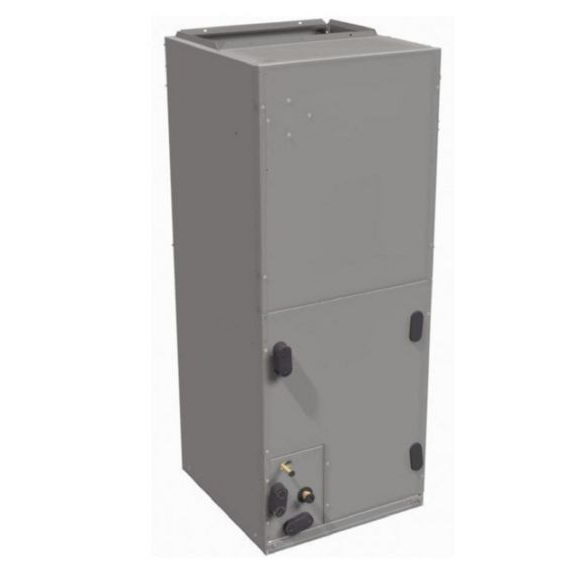

AirQuest 3.5 Ton Air Handler, 208-230/1/60, Multi-Position, R-410A

Description

FAN COILS

FXM4X

• 1½ thru 5 tons
• Available for Environmentally Sound R-410A systems
• TXV metering device factory installed
• High Efficiency, 3-speed, Genteq X0003 X-13 Motor (Brushless Permanent Magnet “BPM”, Electronically Commutated Motor “ECM”)
• Available
  with Industry Exclusive Tin Coated Copper Main Tubing For Additional
  Corrosion Protection (Identified with “T” At End Of Model Number)
• Available with Aluminum Main Tubing (Identified with “L” At End Of Model Number)
• Copper tube / aluminum fin coil
• Sweat connections
• Primary and secondary drain fittings with brass inserts
• 3 amp automotive type fuse in wire harness
• Multiple electrical entry locations
• Time delay relay (TDR) programmed in motor
• Field installed heater packages from 5 Kw – 30 Kw available separately
• HUD approved for manufactured housing
• 208/230-1-60 supply voltage
• Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1.0 inch water column
• 1 inch thick insulation with R value of 4.2
• Multiposition
  installation – upflow or horizontal left standard, horizontal right
  with minor modification (field convertible to downflow with available
  accessory kit)
• No Heat (Plug) Kit factory installed
• Filter factory supplied
