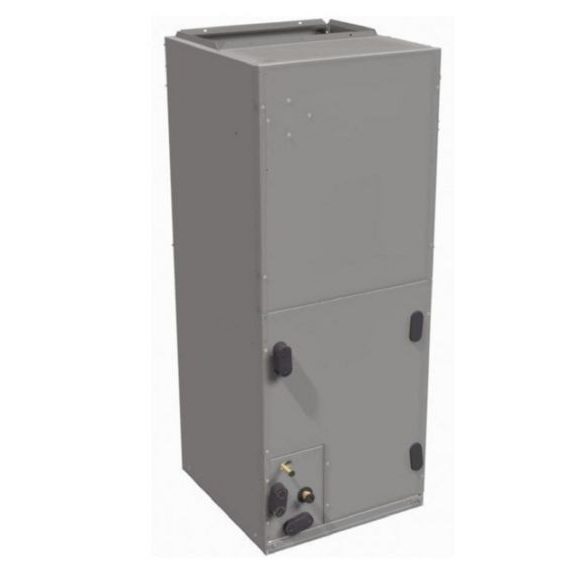

AirQuest 2 Ton Air Handler, 208-230/1/60, Multi-Position, R-410A

Description

Variable Speed Fan Coils:

Features:

• 2, 3, 4, and 5 Tons
• Supports Two-Stage Outdoor Units
• Available For Environmentally Sound R-410A Systems
• Bolt-On, Hard Shut-Off TXV Metering Device Factory Installed On All Models
• Copper Tube/Aluminum Fin Coil On Standard Models
• Available
  with Industry Exclusive Tin Coated Copper Main Tubing For Additional
  Corrosion Protection (Identified with “T” At End Of Model Number)
• Available with Aluminum Main Tubing (Identified with “L” At End Of Model Number)
• Sweat Connections
• Primary and Secondary Drain Fittings with Brass Inserts
• Time Delay Relay (TDR)
• Field Installed Heater Packages From 5 Kw – 30 Kw Available Separately
• Hud Approved For Manufactured Housing
• 208/230-1-60 Supply Voltage
• Multiposition
  Installation – Upflow or Horizontal Left Standard, Horizontal Right
  with Minor Modification (Field Convertible To Downflow with Accessory
  Kits)
• Filter (Washable) Factory Supplied
• Heat Staging Option
• Dehumidification Function with Standardized Logic
• 1 Inch (25mm) Thick Insulation with R Value Of 4.2

Performance:

• Variable Speed ECM Motor On All Models
• Adjustable Cooling and Heating On/Off Delay
• Heat Pump Comfort Option To Provide Higher Than Normal Heating Air Delivery Temperature
• Units Tested and Certified By Manufacturer To Achieve A 2% or Less Leakage Rate At 1.0 Inch Water Column

Easy To Install and Service:

• Multiple Electrical Entry Locations
• TXV and Manifold Positioned To The Side For Easier Cleaning
• Zero Clearance Without Heaters
